Quick Details

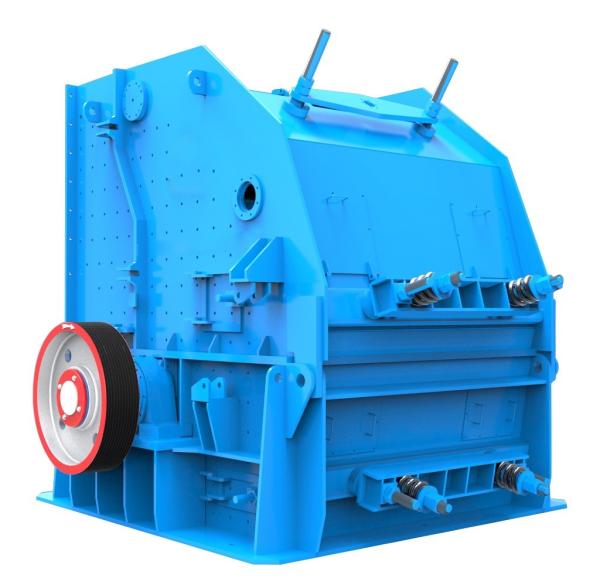

Single Rotor Impact Crusher can crush materials such as granite, limestone, concrete aggregate, etc.

Impact crushers are used for mining crushing with low-price features a unique combination of heavy rotor design, wear material and crushing chamber.

Single Rotor Impact Crusher is specialized in recycling applications but also delivers excellent results with primary crushing of rock.

Impact crushers are simplified crushing processes, and simple structures, and are easy to manufacture.

Working Principle

When the impact crusher works, the motor drives the rotor to rotate with high speed, on the rotor where installed the hammers with high-tech raw material. When the crushed materials get into the impact crusher inner space where the hammers effect, under the impact function of the hammer at a high speed, the materials are thrown to the impact device above the rotor continuously. And then the materials are rebounded from the impact liner to the area where the hammers effects for being crushed. The materials from large to small all to be crushed at the impact crusher chamber repeatedly. The process won't stop till the materials in the impact crusher are crushed to the required size and then discharged from the outlet.

Parameters

Features

1. The special design of the heavy rotor structure provides extremely high rotary inertia and impact crushing force for hammerhead to improve the first-time crushing pass rate.

2. The special design of the hammerhead makes its crushing profile remain unchanged during the service life to ensure the stability of the product gradation.

3. The spare parts adopt a modular design, which ensures high interchangeability, easy control and low cost.

4. The rear frame and access door can be opened at same time to replace all the worn parts, which improves the work efficiency greatly.

Application

Application Fields: water conservancy and hydropower, construction, highway and high speed railway, etc.
Applied Material: aggregates with compressive strength >300MPa, Moh’s hardness > level 6.
