Quick Details

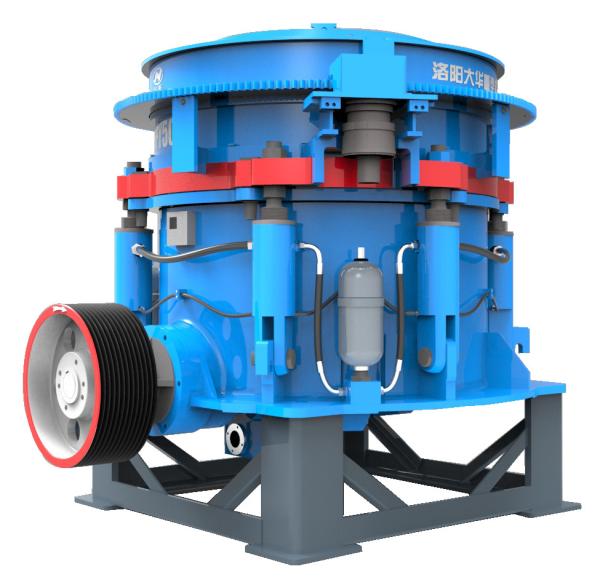

As the second crushing process, High-Efficiency Spring Cone Crusher can process river stone, granite, basalt, and ironstone for medium crushing. This Spring Cone Crusher takes advantage of safety and easy maintenance, and its overload protection device can make production stable and steady.

Working Principle

When Spring Cone Crusher is working, the motor drives the transmission shaft rolling through the pulley and the V-belt. The transmission shaft drives the eccentric bush rolling around the main shaft through the large and small bevel gears. The eccentric bush drives the moving cone to do the swing motion, to make the moving cone sometimes close to and sometimes far from the concave. Then the materials are impacted, extruded constantly in the crushing cavity formed by concave and mantle, and then are crushed and the broken materials are discharged from the lower port.

Parameters

Remark: The capacity above is subject to limestone with a density of 1.6t/m³ under the condition of open-circuit, which is 15-30% lower than it is under the closed-circuit condition.

Features

1. High Productivity: HPY cone crusher combined with the optimal crushing chamber, large eccentricity, optimal swing frequency, and the laminating crushing principle, makes the performance of the HPY cone crusher more stable, getting more greater throughput, higher productivity, and better products shape.
2. High Load Capacity: Optimization design of the strong frame and high strength of fixed shaft structure, unique hydrodynamic lubrication design of copper bush, smart and reliable overload protection system.
3. Automation: The automation control system can achieve overloading protection, iron protection, discharging opening adjustment, and cavity clearing, can also constantly monitor the cone crusher conditions such as oil temperature, oil pressure, motor load, and discharge opening, etc.
4. Broad Applicability: HPY series cone crusher has two types: standard type and short head type. There are several chambers can be chosen for each type. The chamber of the cone crusher can be changed by changing the liner, pulley, and adapter ring to meet the requirements of different production processes and applications.

Application

1. For granite, quarry stones, rocks, aggregate, basalt, limestone, gold ore, iron ore, etc.

2. Common final output size:0-10mm, 10-20mm, 20-30mm, 30-40mm, etc.

3. Hot sale capacity:60-100t/h, 150-200t/h, 200-300t/h, 300-400t/h, 500-600 etc.

★ We have single/multi-cylinder hydro cone crushers for sale, full models for choice, meeting your different needs.
