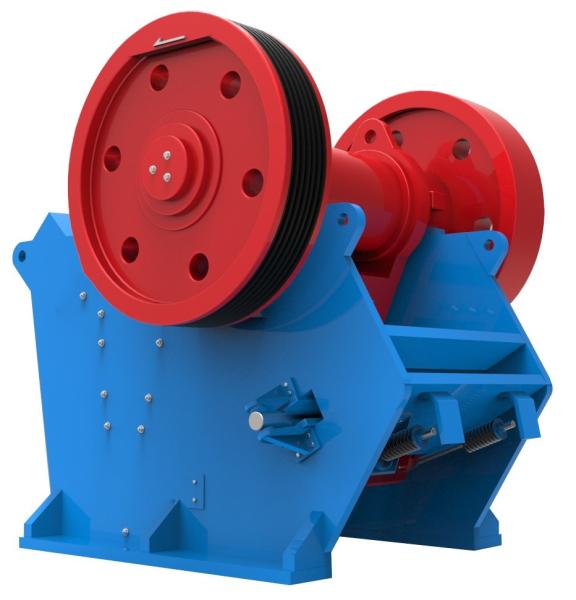

Quick Details
This series of Compact Jaw Crusher Machine manufacturers are mainly
used for rough and moderate broken operations of various ore
materials whose compressive strength is not more than 320 MPa.
This Compact Jaw Crusher Machine has features of high broken ratio,
uniform product size, simple structure, reliable operation,
convenient maintenance, low operating costs, etc, which is widely
used in mining, smelting, building, roads, railways, water
conservancy and chemical industry.
Working Principle
The working mode of the Compact Jaw Crusher Machine is the curved
extrusion type. The working principle is: the motor drives the belt
and pulley, and the movable jaw moves up and down through the
eccentric shaft.
When the movable jaw rises, the angle between the fixed jaw plate
and the movable jaw becomes larger, thereby Push the movable jaw
plate to approach the fixed jaw plate, at the same time, the
material is crushed or chopped to achieve the purpose of crushing;
when the movable jaw goes down, the angle between the fixed jaw
plate and the movable jaw becomes smaller, and the movable jaw
plate is in the tension rod, spring Under the action of the
crusher, it leaves the fixed jaw plate, and the crushed material is
discharged from the lower opening of the crushing cavity.
With the continuous rotation of the motor, the crushing jaws
perform periodic motions to crush and discharge materials to
achieve mass production.
Parameters
| Model | Inlet Size(mm) | Discharge Gap(mm) | Capacity(t/h) | Power(kW) |
| C1008 | 1020×800 | 65-250 | 185-500 | 110 |
| C1210 | 1160×1050 | 75-275 | 270-810 | 132 |
| C1412 | 1400×1200 | 95-300 | 390-950 | 185 |
| C1615 | 1610×1400 | 115-300 | 470-1150 | 220 |
| C1815 | 1800×1500 | 125-325 | 630-1300 | 355 |
Features
- This new technology has the features of excellent motion
characteristics, a special chamber design that saves more than 10%
energy consumption, and more than 15% bigger throughput.
- The unique crushing chamber design makes the availability of jaw
plates much higher. The jaw plate can be switched four times which
achieves evenly attrition. This advances material availability and
prolongs service life.
- The teeth on the jaw plate in the crushing chamber face to face
(swing jaw plate and fixed jaw plate), which is good for crushing
hard materials.
- The structure design of adjustable transmission angle makes higher
capacity in the same discharge outlet.
- Fixed jaw plate and swing jaw plate can be changed for each other.
This design will save the user’s spare consumption and the assembly
is more convenient.
- The hydraulic adjustment of the double-jack for the discharge
outlet is convenient and labor-saving.
- The swing jaw and main frame can be disassembled easily which is
convenient for transportation.
Application
Application Fields: metallurgy, mining, chemical, cement,
construction, etc
Applied Material: limestone, dolomite, phosphate ore.
